Purple Co. · 3G release · 200-count master carton · powered by ES Vapes

The 2G carton, inverted to grey, for the 3G.

Built on the 2G master carton's own die (21.25 × 11.5 × 8 in) with Purple Co.'s own 2G artwork, now white on a grey box. The 3G badge from the ten-pack sits beside TRIPL3 TANK AIO. ES Vapes rides along as the hardware maker: a Powered by ES lockup on the long walls, and a fat ES on each half of the top, clear of the tape.

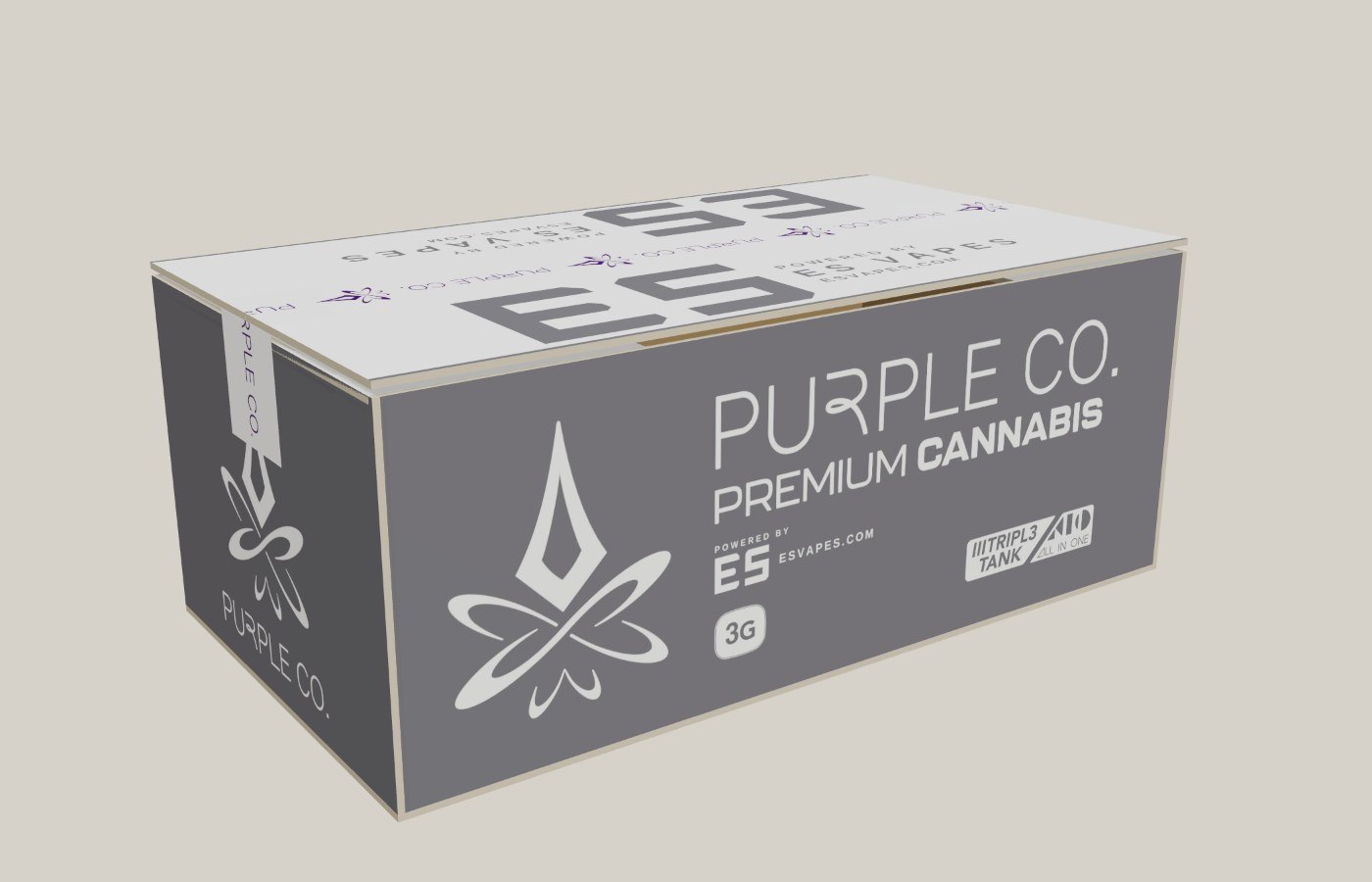

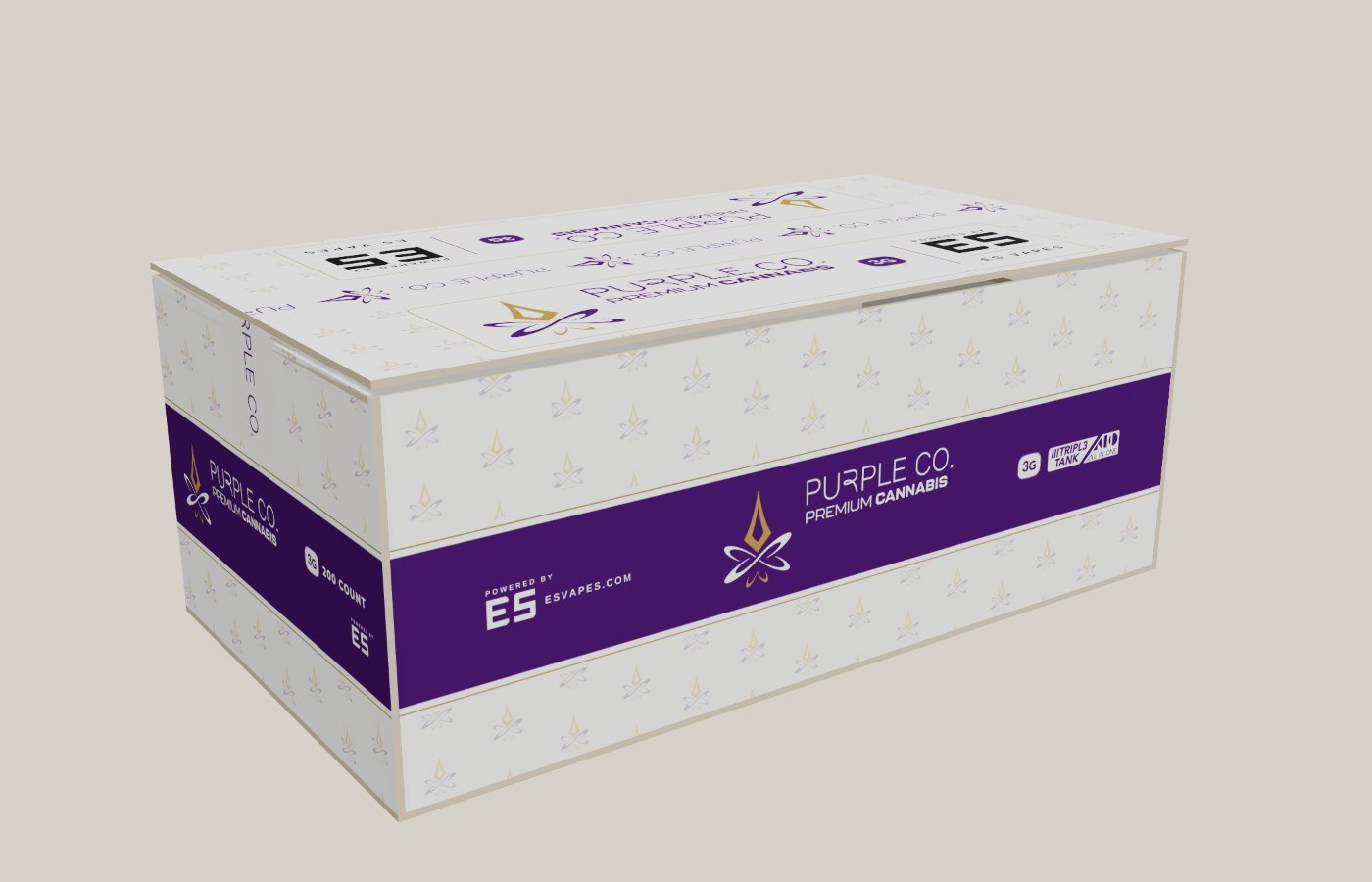

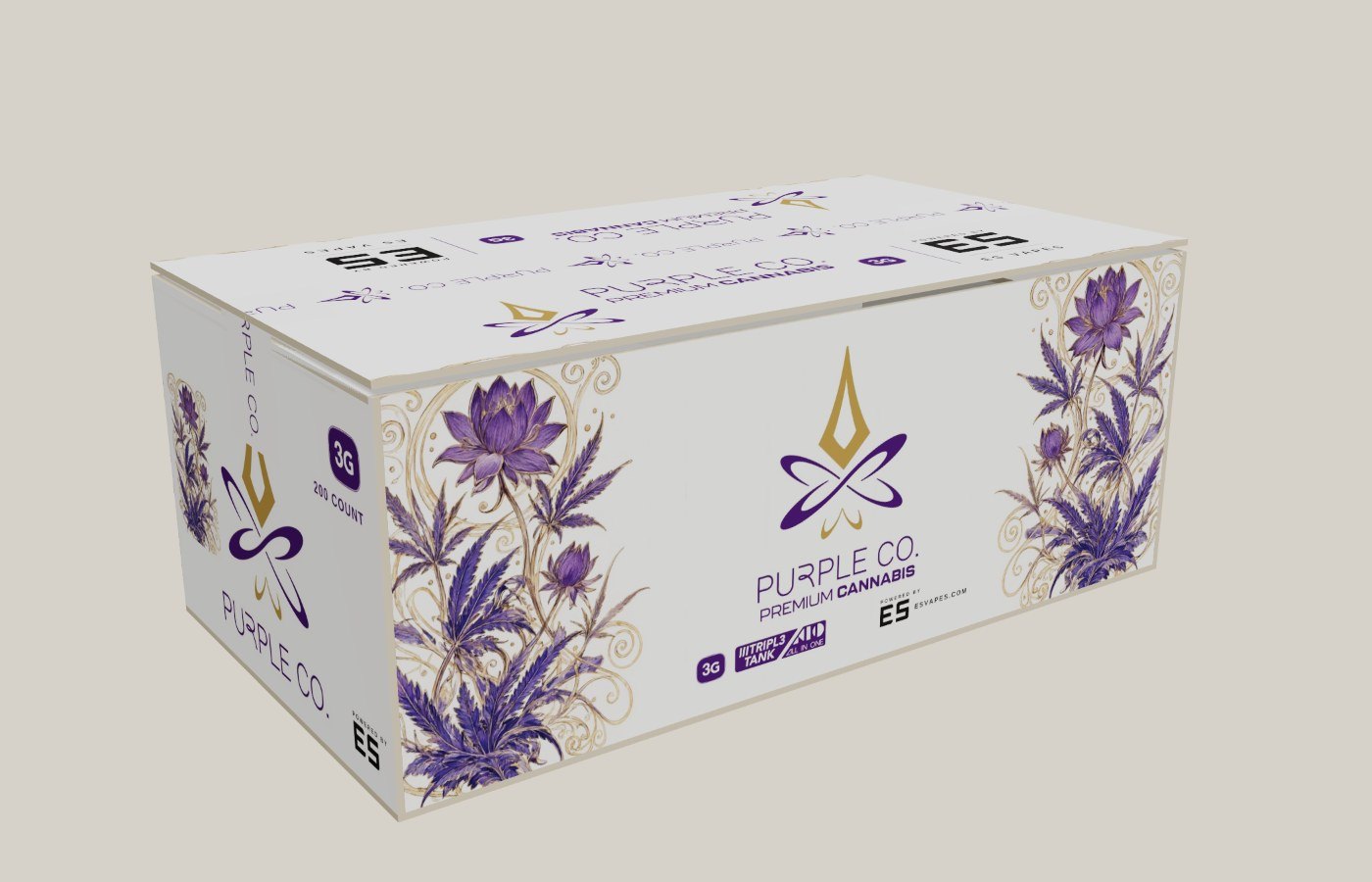

Purple Co 3G master carton, 3D render of the print file

Download the print files

Everything for the plant: carton upload, tapes, proofs, ES mark vectors, read-mezip · 3.42 MiB Carton upload PDF only (on the 2G die)pdf Purple Co. sealing tape, as supplied with the 2G cartonpdf Optional ES Vapes sealing tape (same UPrinting 2.75 in format)pdf

Turn it over

The walls, the top, the die

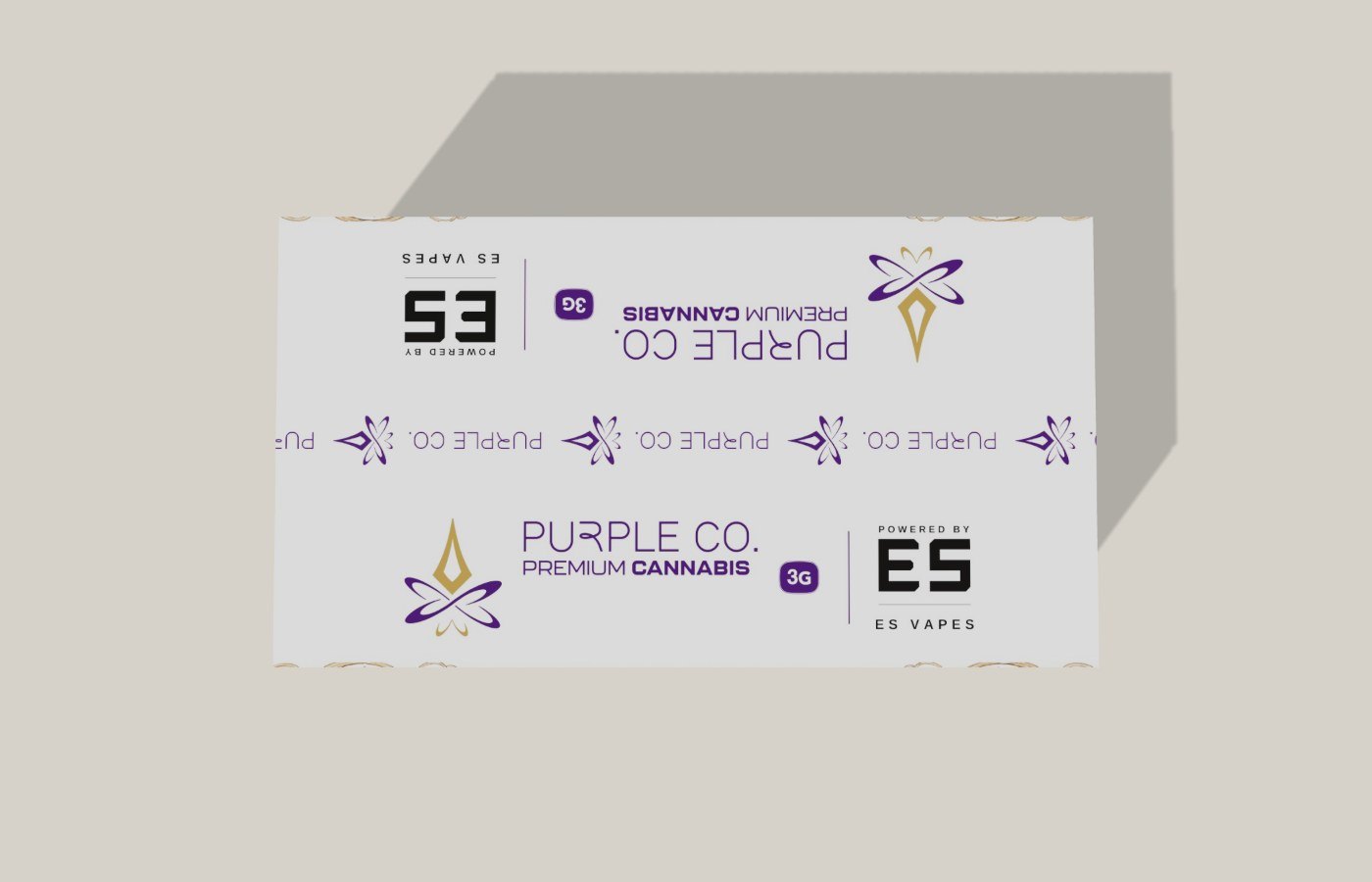

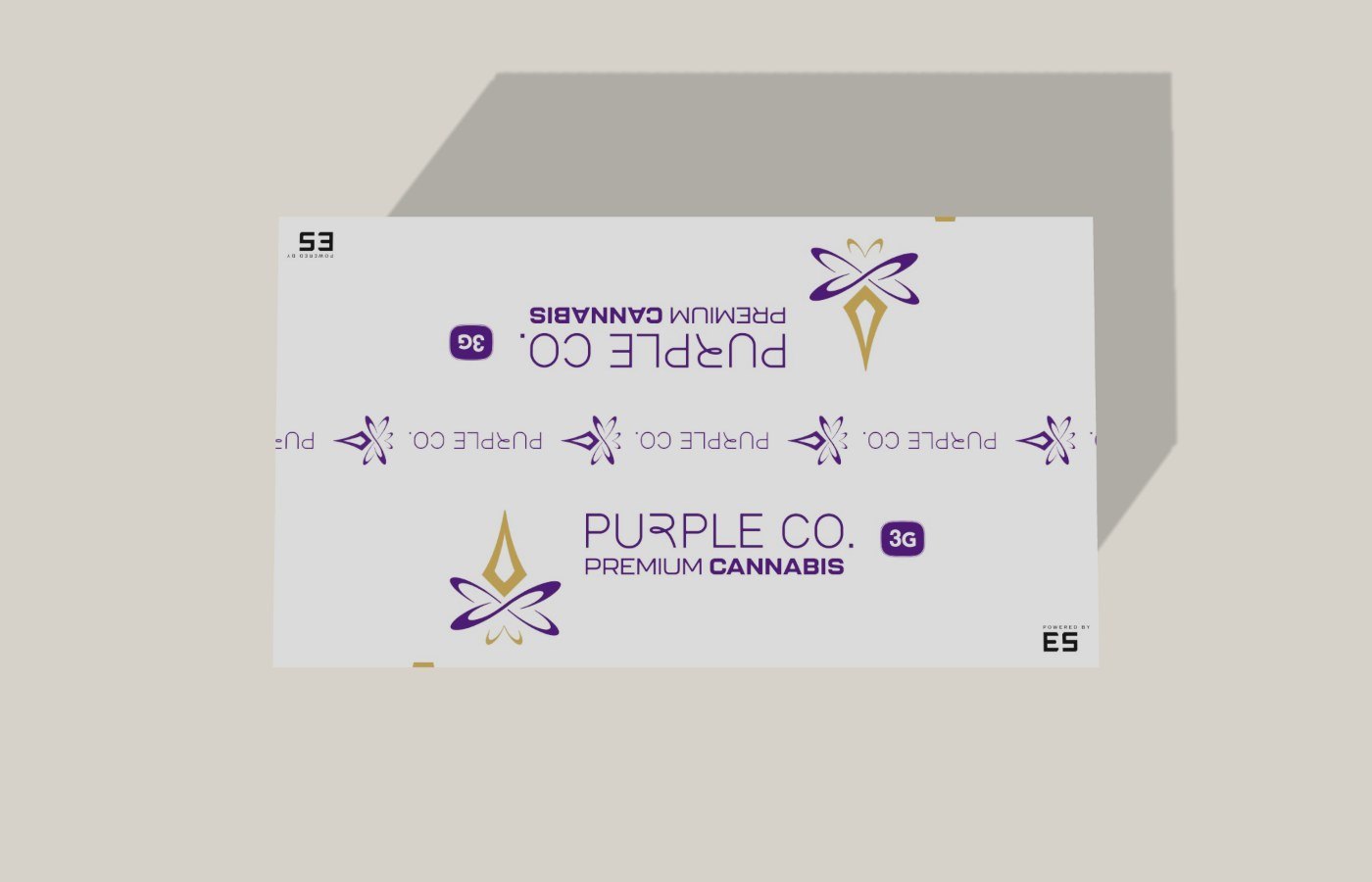

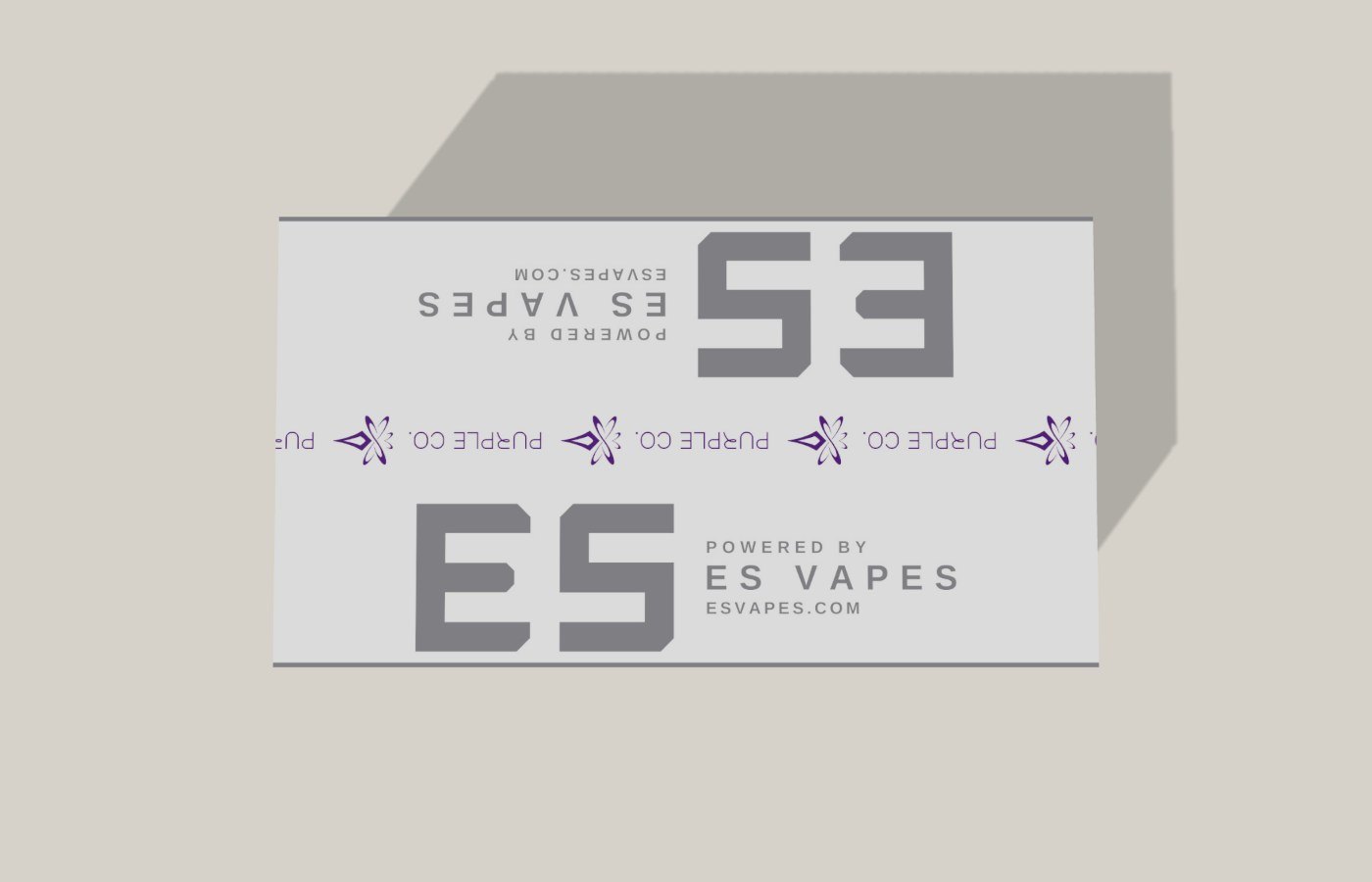

Taped: the Purple Co. tape runs down the middle; each half of the top carries ES, upright from its own side.

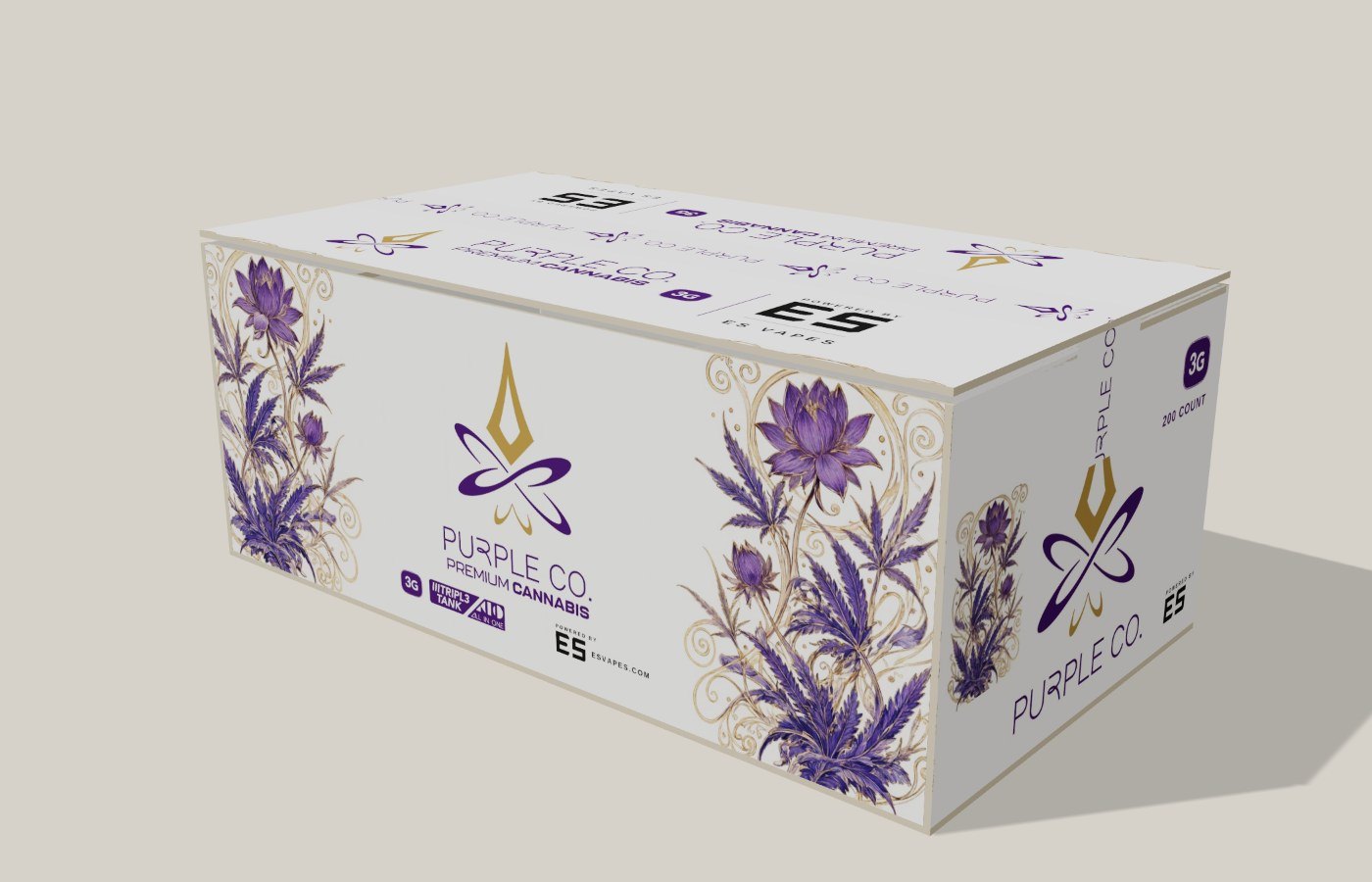

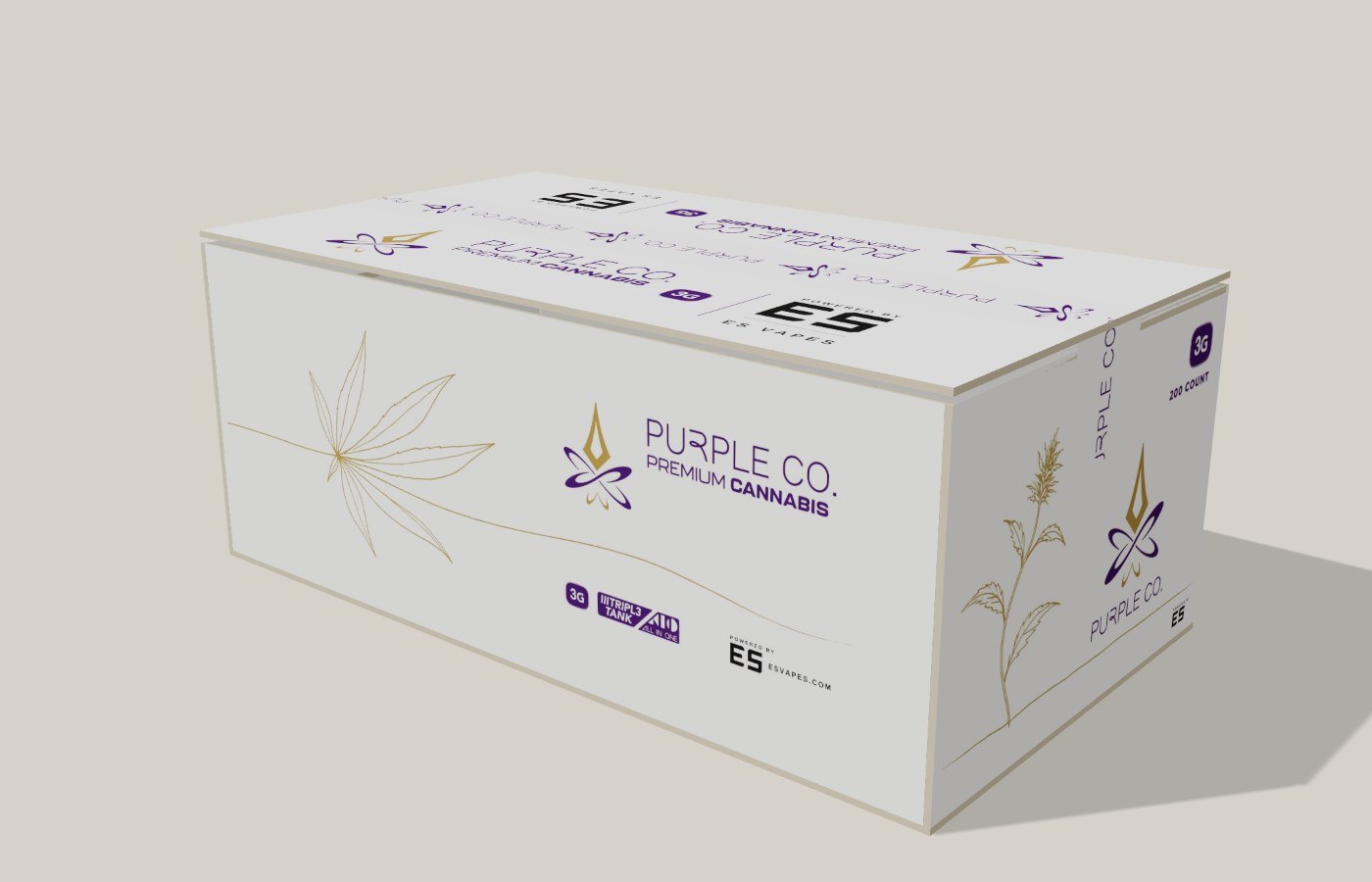

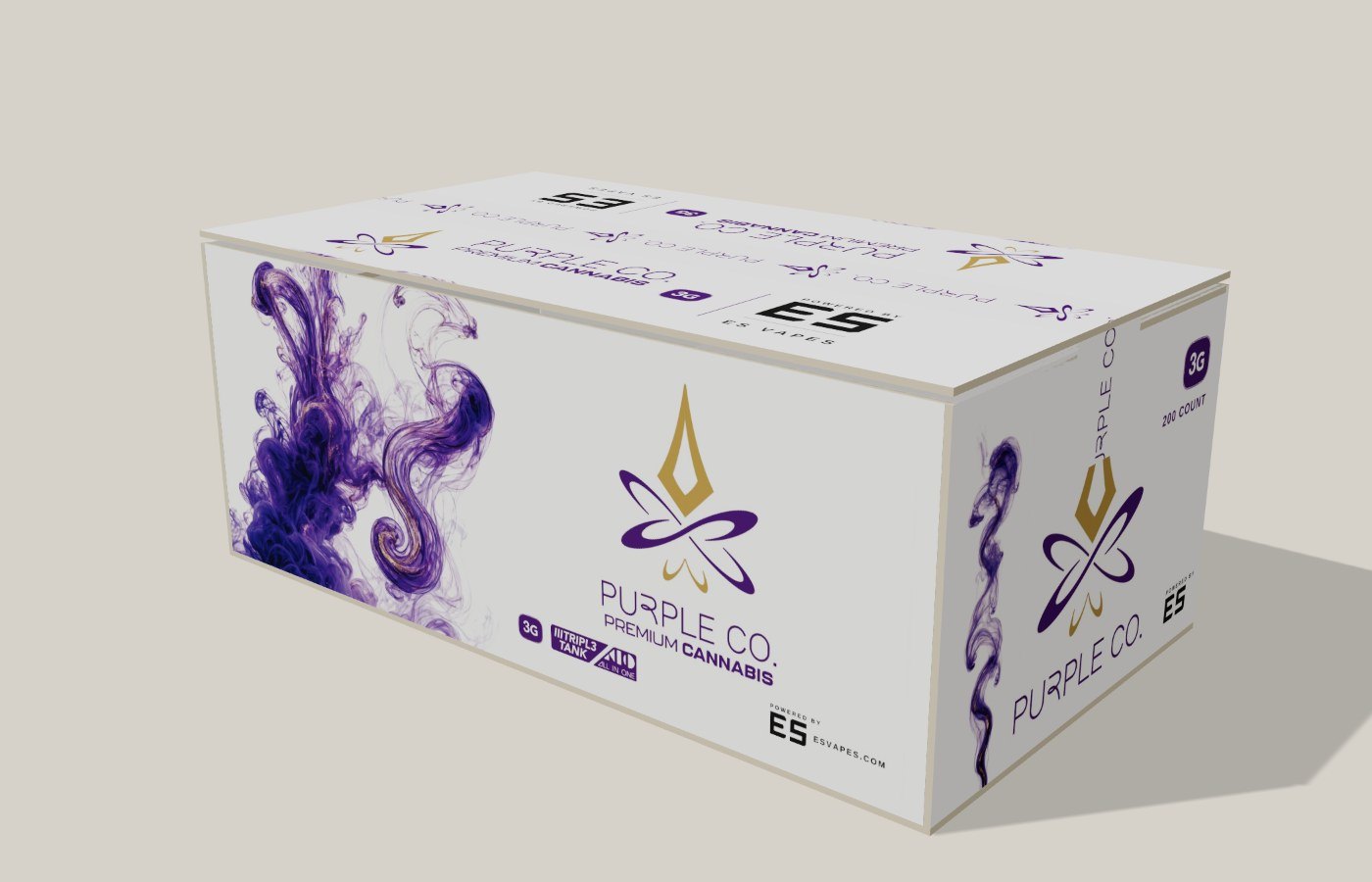

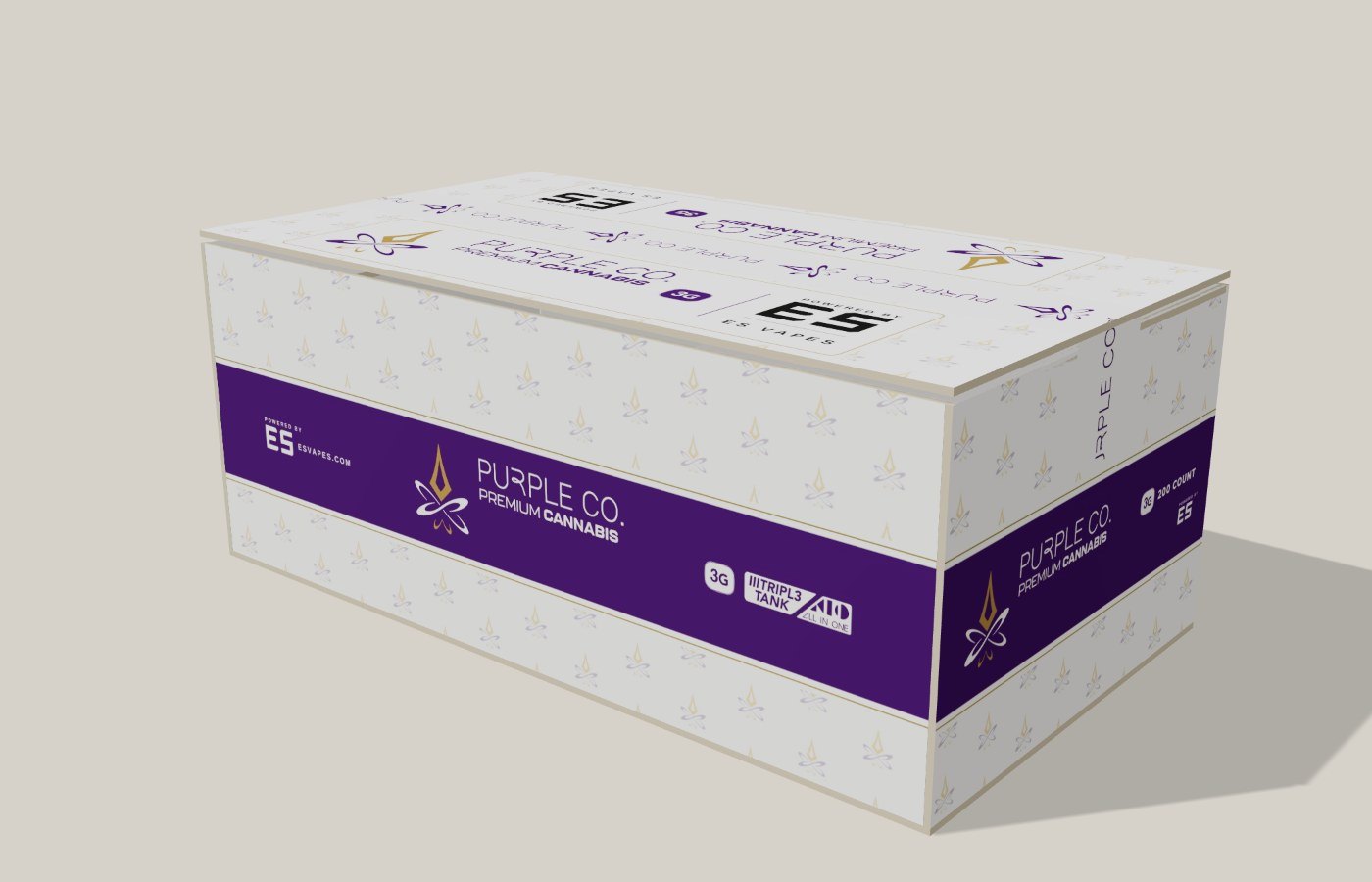

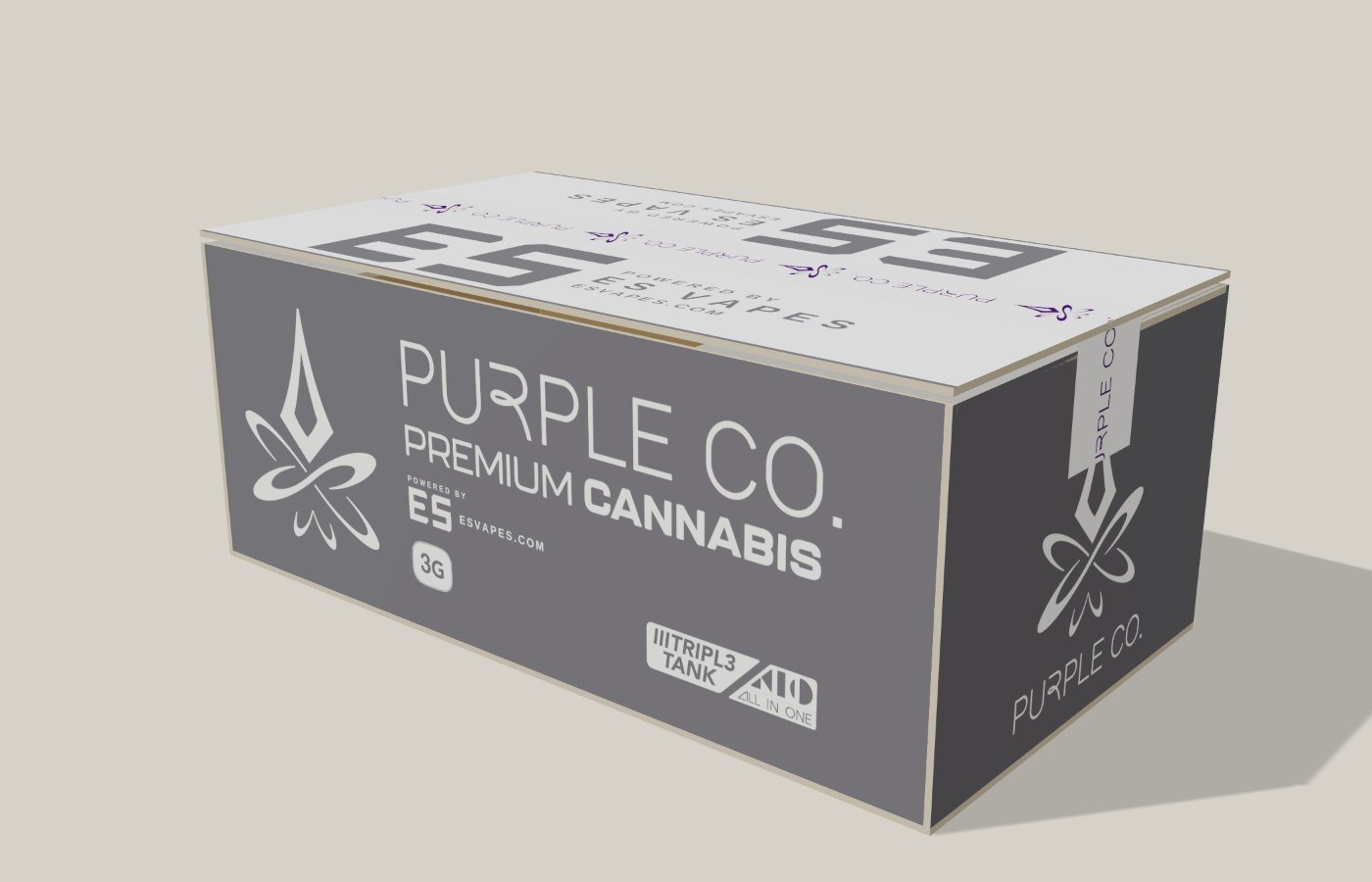

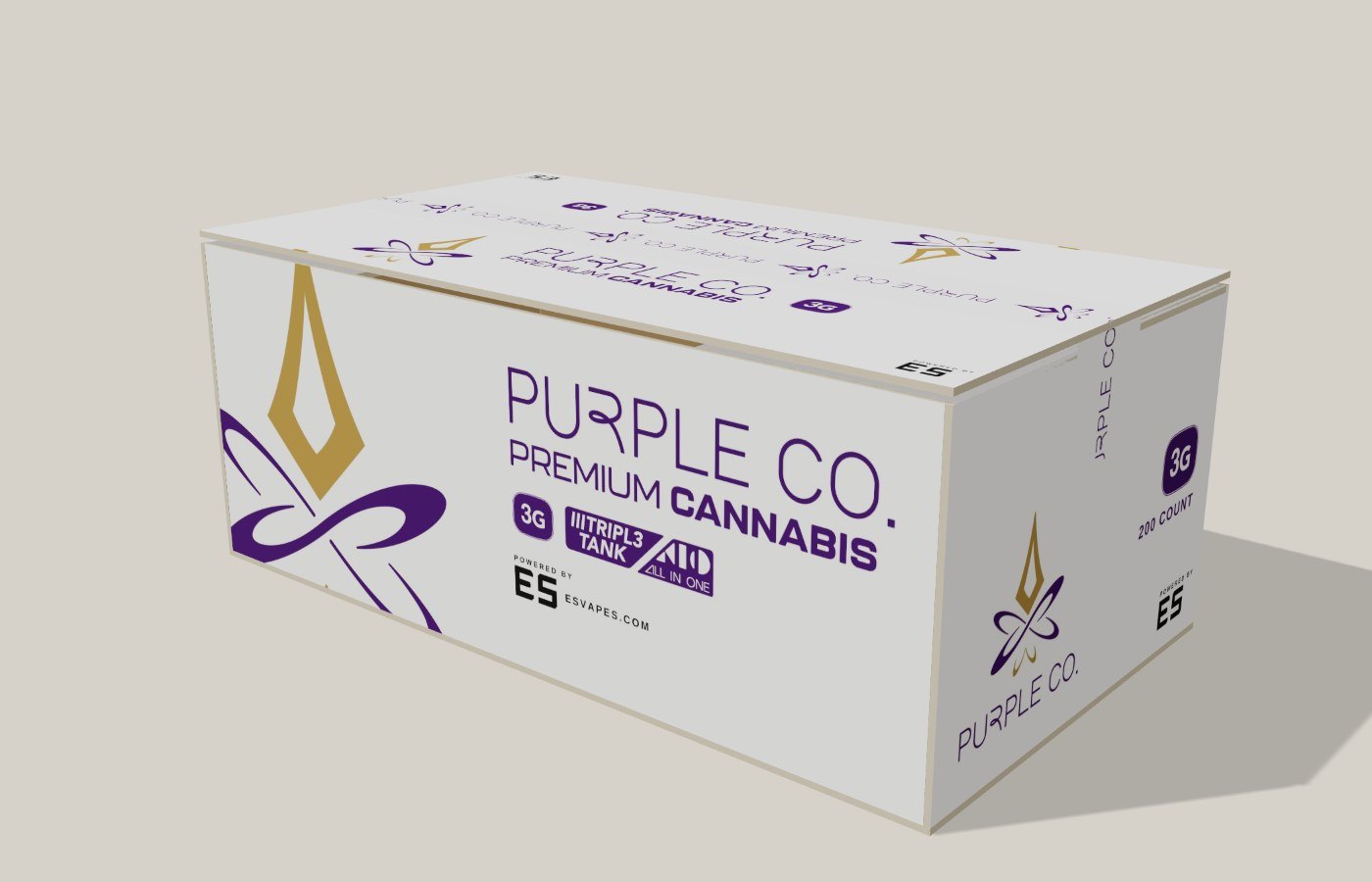

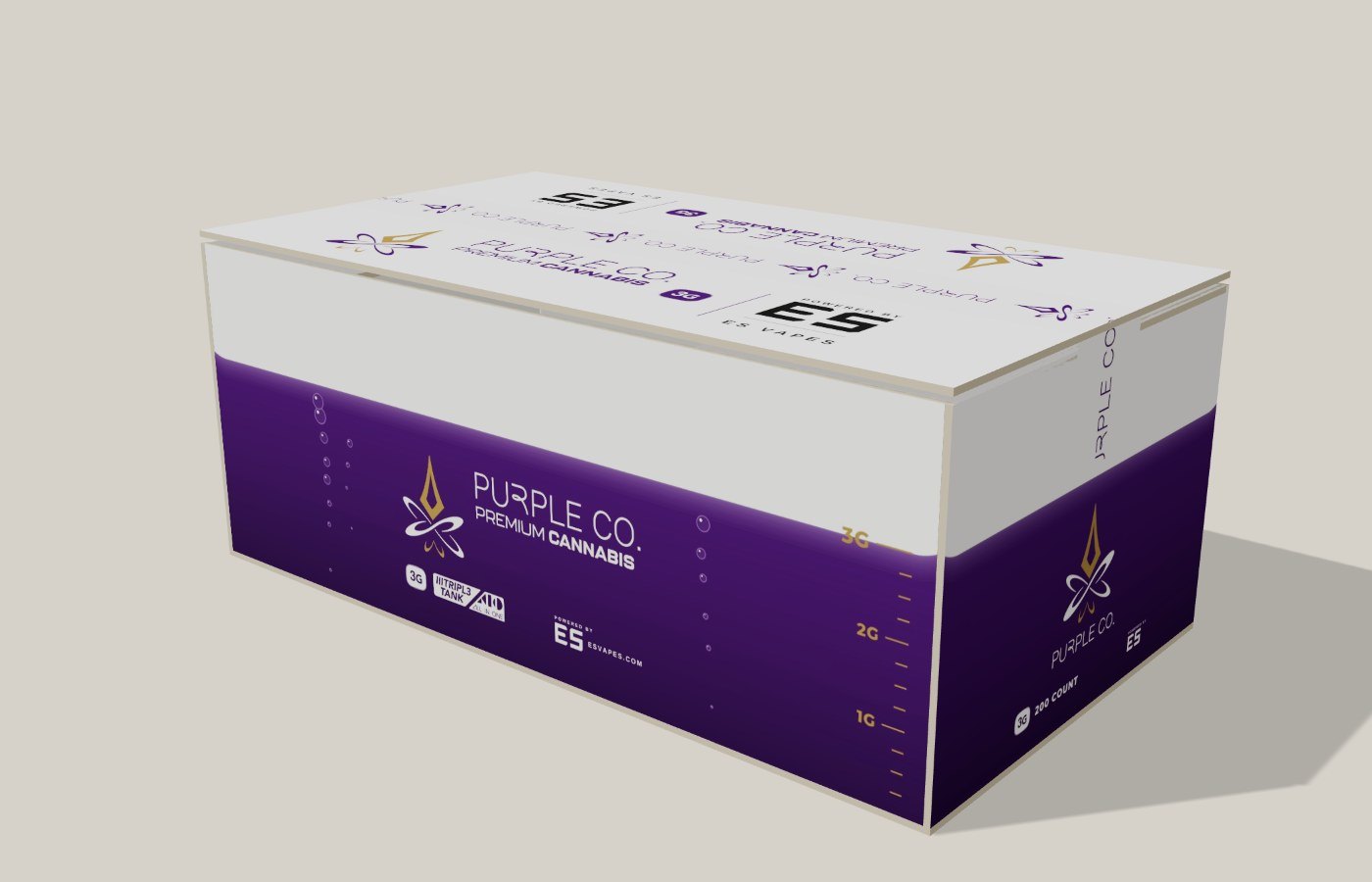

Front and right end.

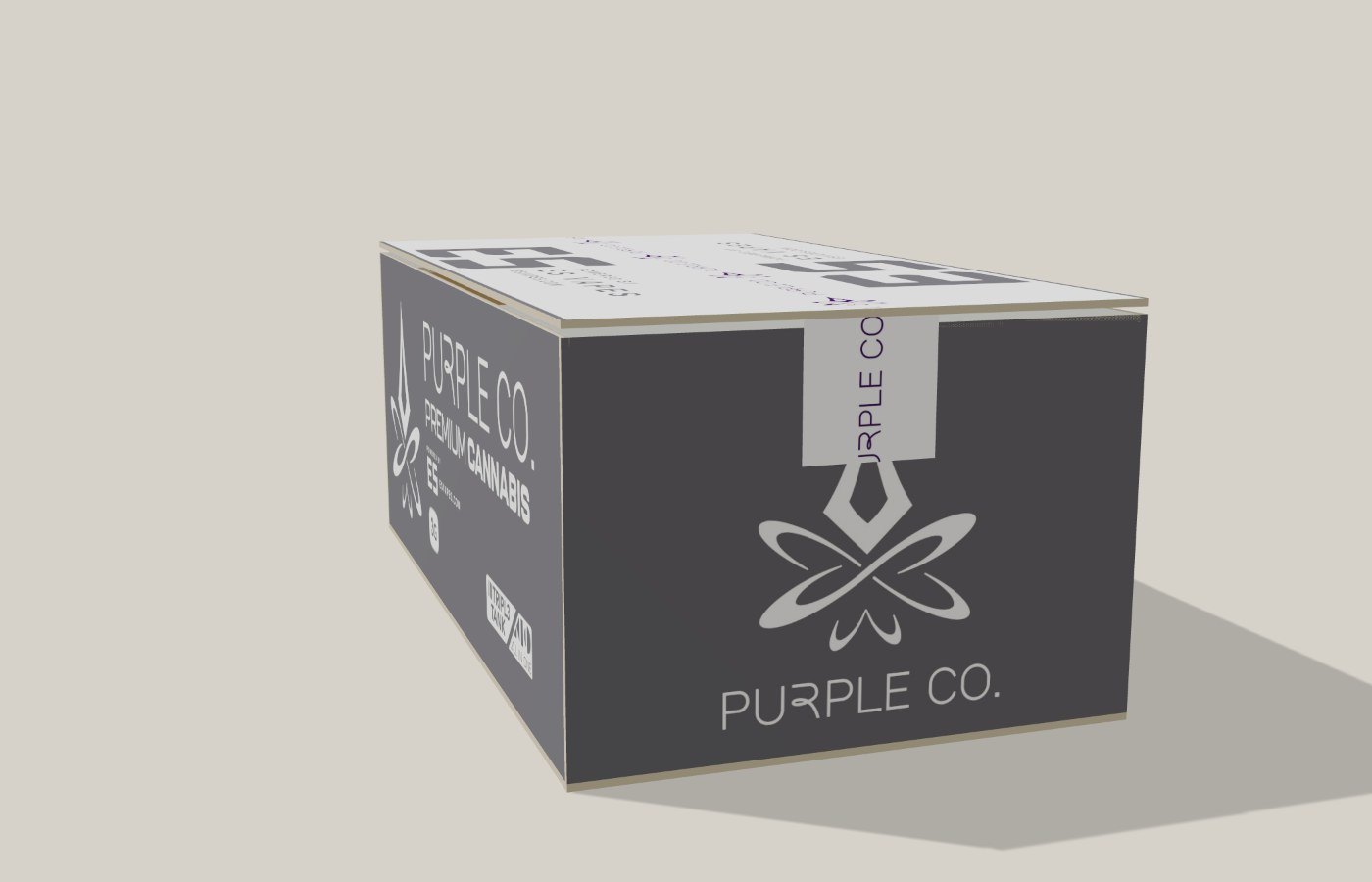

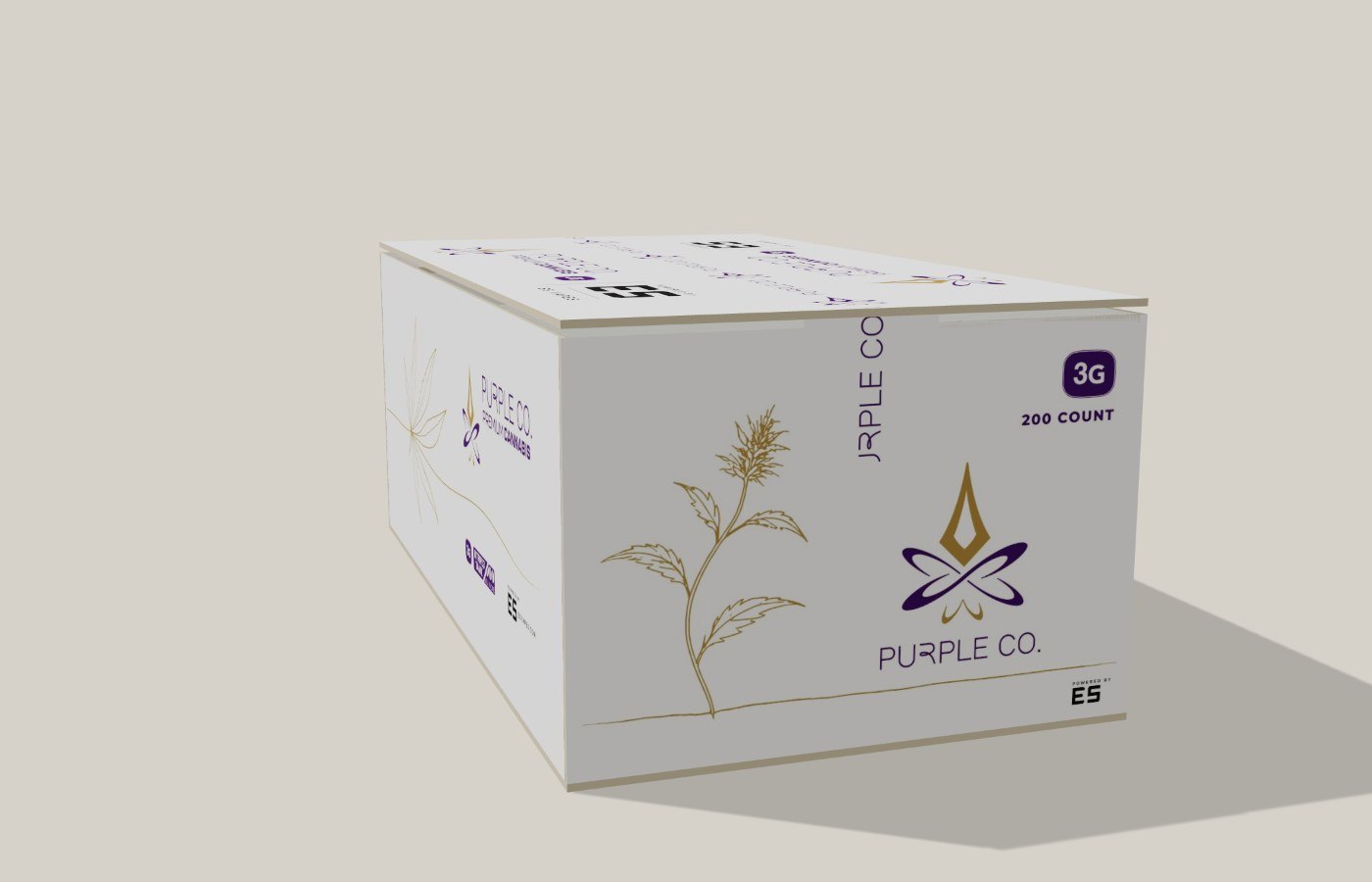

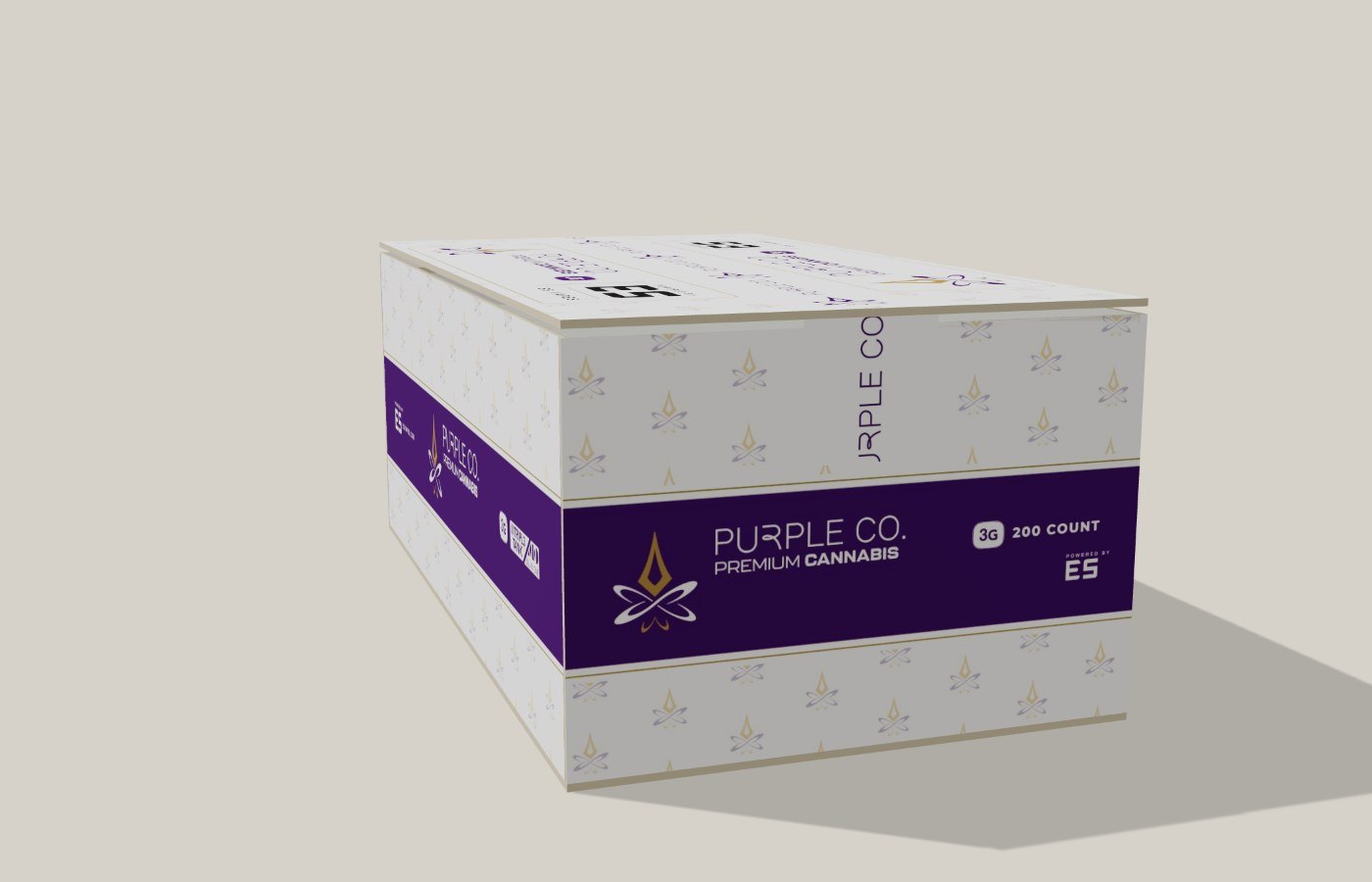

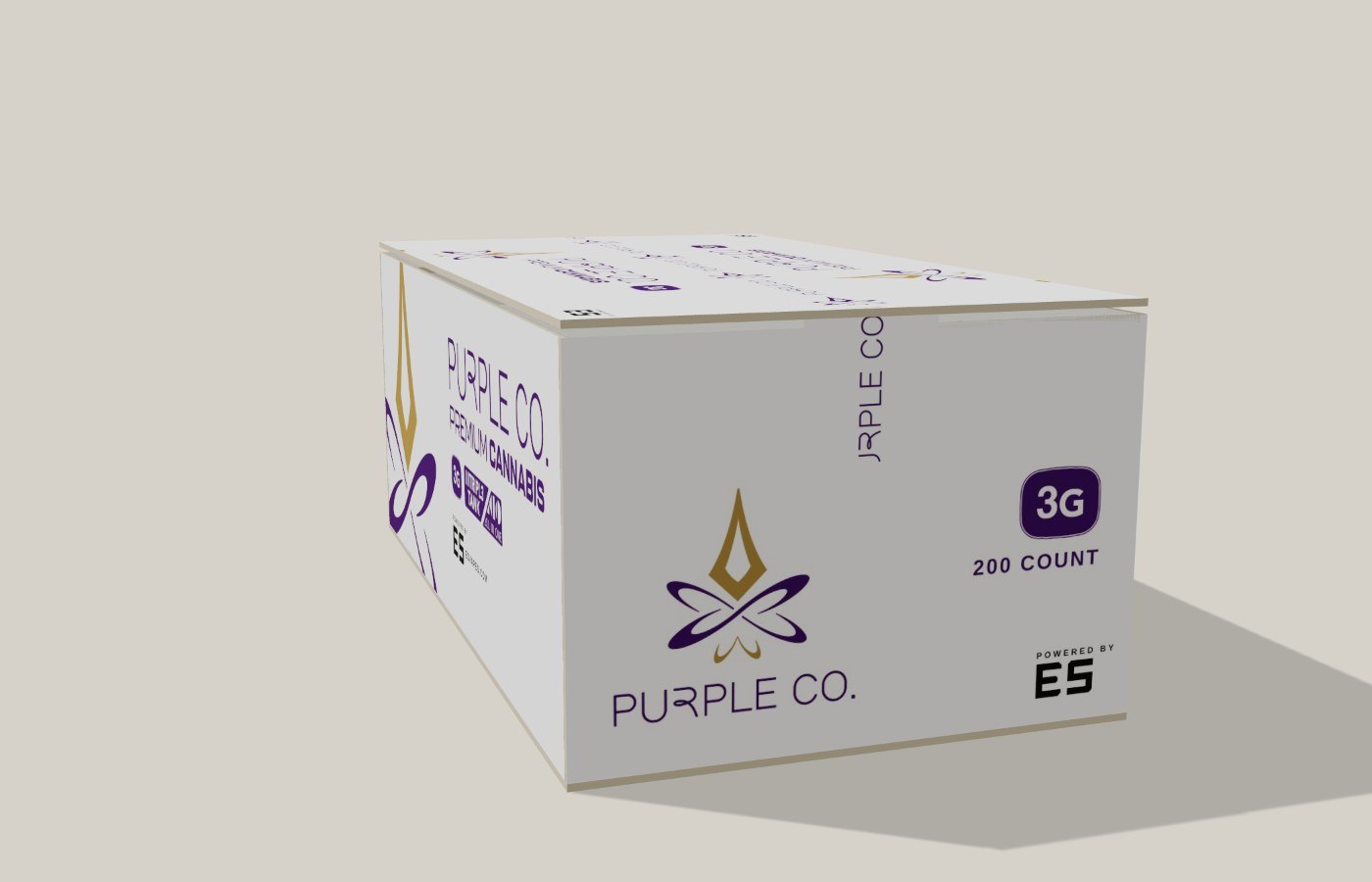

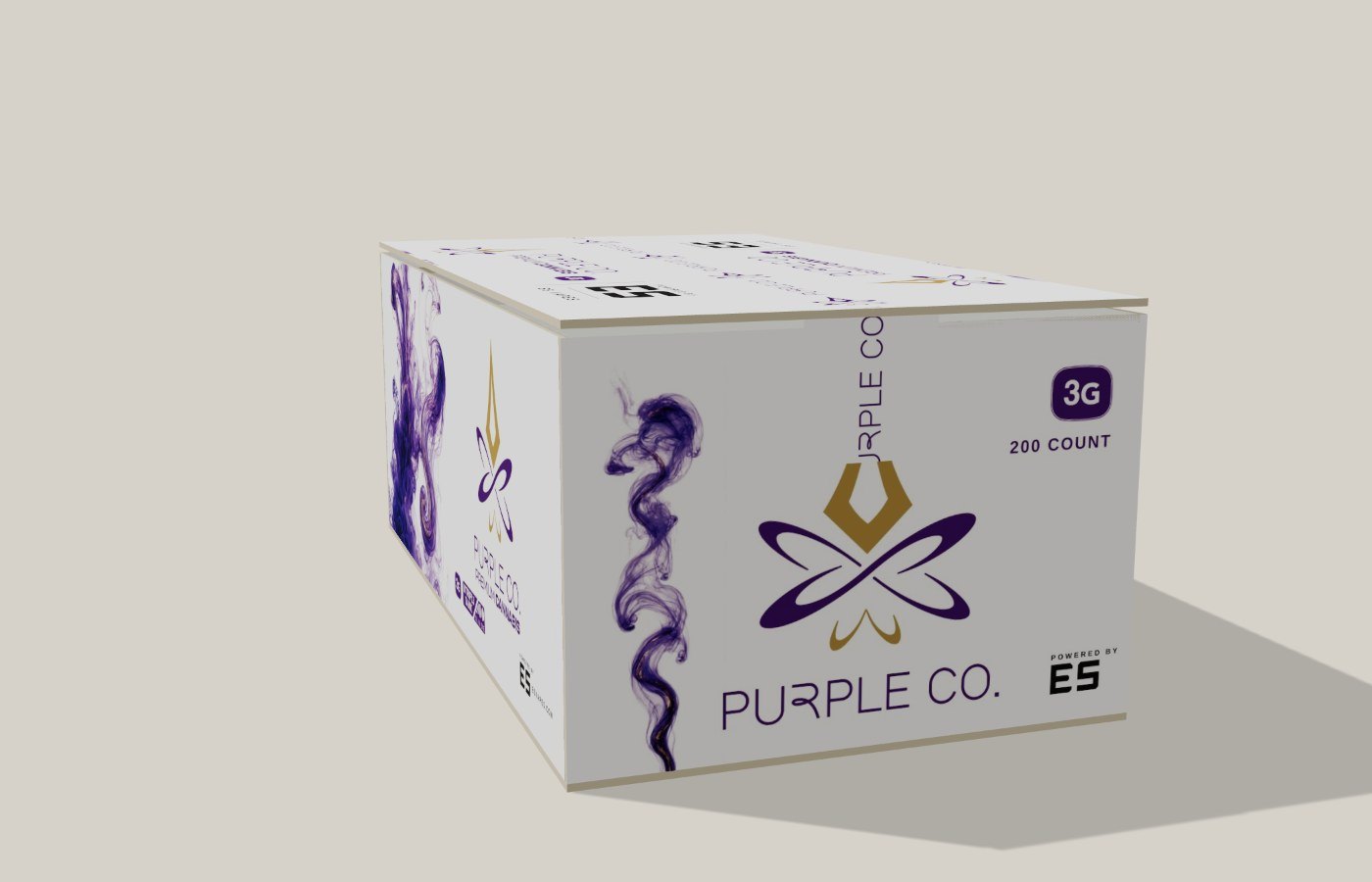

End walls: the 2G layout, inverted.

Back and left end.

Production notes

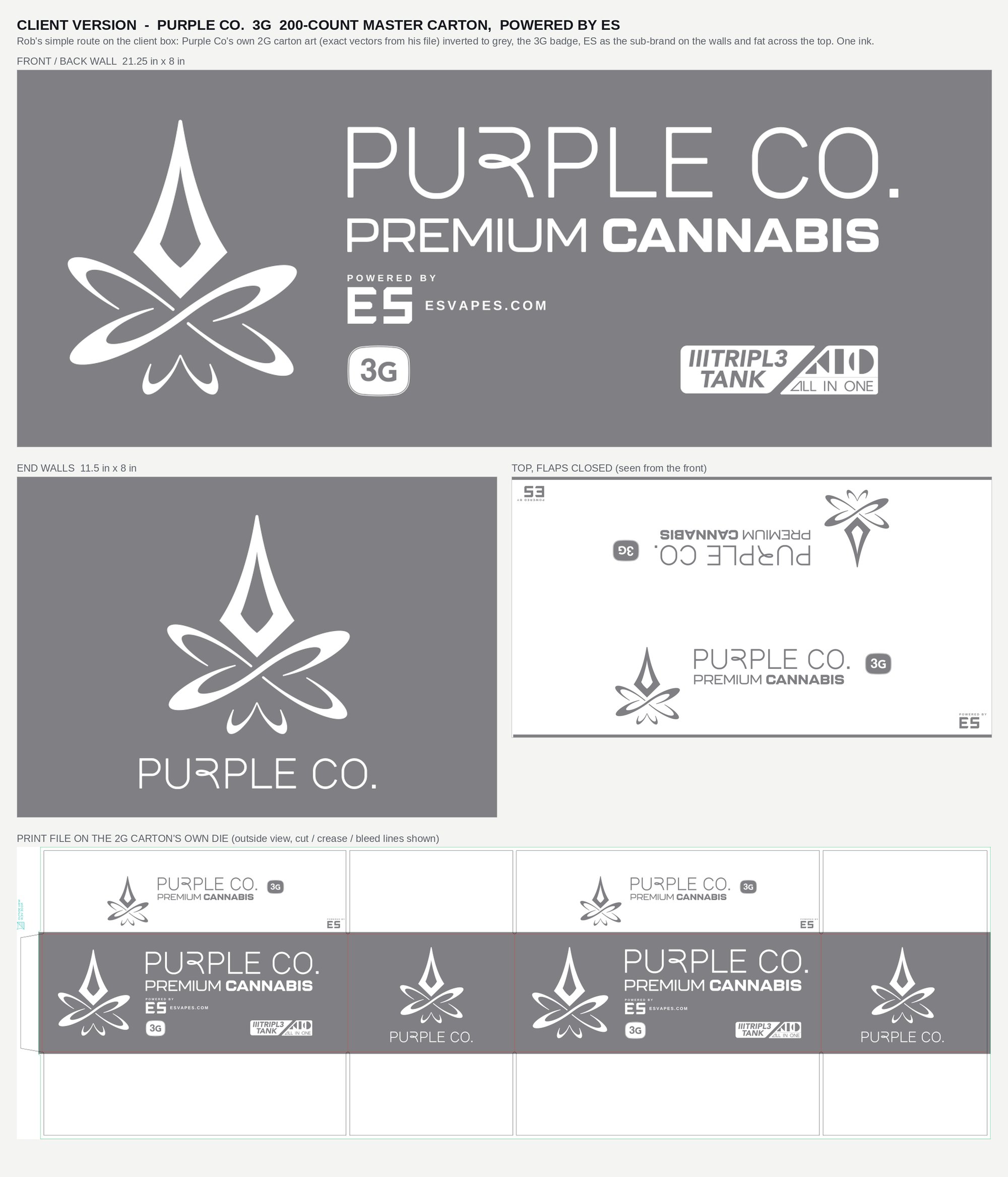

Die: the 2G 200-count master carton's own ArtiosCAD die, unchanged. The upload PDF is that same page with the new art; its die lines are the template's non-printing Artios separations.
One solid spot ink: PANTONE Cool Gray 10 C. Everything white is bare board (knocked out). Outside only, white board; the short top flaps and the bottom stay unprinted.
Purple Co.'s 2G artwork is used exactly as supplied (lifted as vectors from the 2G production file, positions unchanged).
All art is vector with outlined type: no fonts and no images. Checked in MuPDF and in Chrome's PDF engine (PDFium) with zero content differences. Every file is listed with SHA-256 in the zip.

Dowgiallo Technologies for ESVAPES / Purple Co. · release v1 · 2026-10-15
